Bore Size:300-460mm
Bore Size:300-460mm – 浏览次数：1 –时间：2010-12-13
Product details：

Spherical roller bearings are double row,self-reraining units comprising solid outer ring with a concave raceway,solid inner rings and barrel rollers with cages.The inner rings with cylindrial or tapered bores.The symmetrical barrel rollers freely align themselves to the concave outer ring raceway.As a result,shaft deflections and mislignments of the bearing seats are compensated.

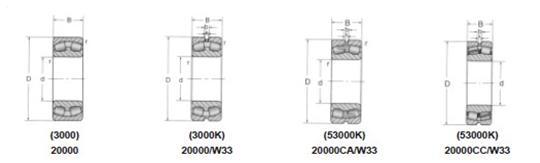

Designations Old spec Principal Dimensions (mm) Basic load rating (kN) Speed ratings (rpm) Weight (kg)
d D B Dynamic Staitc Grease Oil
24068CA 4053168 300 520 180 2460 5700 530 670 136
23168 3003768 300 580 190 2490 3840 600 750 210
23168CA 3053768 300 580 190 3050 6300 600 750 211
24168CA 4053768 300 580 243 3626 7791 320 400 256
23972CA 3053972 360 480 90 1264 2764 850 1100 46.6
23072CA 3053172 360 540 134 2280 4800 670 850 126
23172CA 3053772 360 600 192 3250 6850 560 700 255
24072CA 4053172 360 540 180 2490 5240 500 630 148
24172CA 4053772 360 600 243 5208 7728 300 380 270
23272CA 3053272 360 650 232 4560 8300 400 500 330
22372CAKF3 153672W2 360 750 224 4900 8600 400 500 466
23976CA 3053976 380 520 106 1695 3724 800 1000 69.5
23076CA 3053176 380 560 135 2430 4900 630 800 130
24076CA 4053176 380 560 180 3150 6900 480 600 154
23176 3003776 380 620 194 3170 6920 400 500 227
23176CA 3053776 380 620 194 3400 7350 400 500 250
23980CA 3053980 400 540 106 1695 3822 750 950 72.4
23080CA 3053180 400 600 148 2489 5782 600 750 158
24080CA 4053180 400 600 200 2900 6240 450 560 202
23180 3003780 400 650 200 3532 7816 380 480 268
23180CA 3053780 400 650 200 4080 7650 380 480 273
24180CA 4053780 400 650 250 3910 7840 180 240 110
23280CA 3053280 400 720 256 5000 8800 340 430 353
23084CA 3053184 420 620 150 2704 6393 450 560 149
24084CA 4053184 420 620 200 3750 8150 380 480 214
23184CA 3053784 420 700 224 4250 9200 360 450 353
23284CA 3053284 420 760 272 5610 11900 320 400 550
23088CA 3053188 440 650 157 2780 6500 430 530 186
24088CA 4053188 440 650 212 3260 7050 360 450 243
23188CA 3053788 440 720 226 4410 9800 340 430 378
23092CA 3053192 460 680 163 3381 6810 400 500 228
24092CA 4053192 460 680 218 　 　 340 430 275
23192CA 3053792 460 760 240 5500 10000 320 400 460
