Model:UC305-UC328
Model:UC305-UC328 – 浏览次数：1 –时间：2010-12-14
Product details：

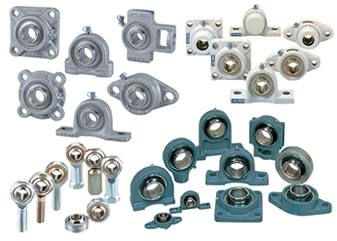

The pillow block ball bearings are composed of a single row deep groove ball bearings with seals at both sides and spherical outside surface, and a housing, suitable for simple support.
The design of the outer spherical bearings is aligning, easy to install, and has a dual structure of sealing device, which can work under bad environment. The bearing base is molded by casting.
Usage: Widely used in varieties of mechanical equipment, especially for agricultural, metallurgical, textile and printing machinery.
Pillow block units:
--UB,UC,UK,UEL,SA,SB --P,F,FL,T,FC,PA,PH,FB,C,FS

Model d D B S S1 C Ca Cb G Ds
Min Max
UC305 25 62 38 15.0 23 17 24 5.4 3 6 M60.75
UC306 30 72 43 17.0 26 19 26 5.7 3 6 M60.75
UC307 35 80 48 19.0 29 21 28 6.2 3 6 M81
UC308 40 90 52 19.0 33 23 30 7.0 3.5 10 M101.25
UC309 45 100 57 22.0 35 25 33 7.8 3.5 10 M101.25
UC310 50 110 61 22.0 39 27 35 8.5 4 12 M121.5
UC311 55 120 66 25.0 41 29 37 9.2 4 12 M121.5
UC312 60 130 71 26.0 45 31 39 9.8 4 12 M121.5
UC313 65 140 75 30.0 45 33 41 10.5 4 12 M121.5
UC314 70 150 78 33.0 45 35 43 11.1 4.5 12 M121.5
UC315 75 160 82 42.0 50 37 46 11.8 4.5 14 M141.5
UC316 80 170 86 34.0 52 39 48 12.5 5 14 M141.5
UC317 85 180 96 40.0 56 41 50 13.1 5 16 M161.5
UC318 90 190 96 40.0 56 43 52 13.8 5 16 M161.5
UC319 95 200 103 41.0 62 45 54 14.7 5 16 M161.5
UC320 100 215 108 42.0 66 47 58 15.7 5.5 18 M181.5
UC321 105 225 112 44.0 68 49 60 16.3 5.5 18 M181.5
UC322 110 240 117 46.0 71 50 62 17.7 6 18 M181.5
UC324 120 260 126 51.0 75 55 66 19.0 6 18 M181.5
UC326 130 280 135 54.0 81 58 72 20.0 6 20 M201.5
UC328 140 300 145 59.0 86 62 76 22.0 6 20 M201.5
