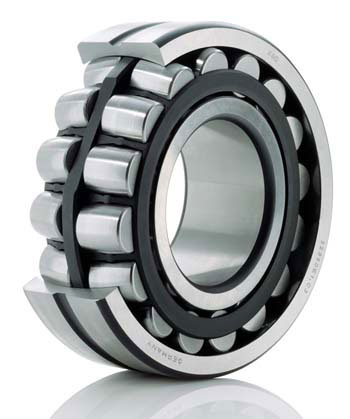

产品详细介绍：Spherical roller bearings are double row,self-reraining units comprising solid outer ring with a concave raceway,solid inner rings and barrel rollers with cages.The inner rings with cylindrial or tapered bores.The symmetrical barrel rollers freely align themselves to the concave outer ring raceway.As a result,shaft deflections and mislignments of the bearing seats are compensated.

Spherical Roller Bearing
Bore Size:45-1280mm

Designations	Old spec	Principal Dimensions (mm)			Basic load rating (kN)		Speed ratings (rpm)		Weight (kg)
		d	D	B	Dynamic	Staitc	Grease	Oil
22309CA	53609	45	100	26	127	168	3800	4800	1.56
22211CA	53511	55	100	25	90.2	119	4300	5400	0.897
22212CA	53512	60	110	28	110	154	4000	5000	1.01
22312	3612	60	130	46	225	248	3000	3800	2.89
22313	3613	65	140	48	244	310	2600	3400	3.49
22213CA	53613	65	140	48	238	325	2600	3400	4.92
21314CA	53314	70	150	35	183	224	2400	3200	3
21315CA	53315	75	160	37	186	242	2200	3000	3.78
23015CA	3053115	75	115	30	115	200	2200	3000	1.13
24015CA	4053115	75	115	40	120	215	2200	3000	1.32
22216	3516	80	140	33	146	226	3200	4000	2.12
22216CA	53516	80	140	33	150	225	3200	4000	2.08
22316	3616	80	170	58	375	455	2000	2800	6.24
22317CA	53617	85	180	60	355	505	1900	2600	8.01
22218CA	53518	90	160	40	188	252	2600	3400	3.4
23218CA	3053218	90	160	52.4	290	475	1900	2600	4.82
22318CA	53618	90	190	64	420	625	1900	2600	9.68
22219	3519	95	170	42	247	375	2400	3200	4.31
22219CA	53519	95	170	42	245	375	2400	3200	4.4
22219CAK	153519	95	170	42	245	375	2400	3200	4.22
22319CA	53619	95	200	67	465	685	1800	2400	10.5
22220	3520	100	180	46	283	435	2200	3000	5.24
23220CA	3053220	100	180	60.3	465	685	1800	2400	10.5
22320CA	53620	100	215	73	540	815	1700	2200	13.8
23122CA	3053722	110	180	56	325	580	1900	2600	5.37
24122CA	4053722	110	180	69	425	750	1000	1400	6.61
22222	3522	110	200	53	330	375	2000	2800	7.26
23222CA	3053222	110	200	69.8	490	720	1600	2000	10.1
22322	3622	110	240	80	640	915	1600	2000	18.1
23024	3003124	120	180	46	224	361	2000	2800	4.1
23124CA	3053724	120	200	62	400	700	1800	2400	12.4
24124CA	4053724	120	200	80	495	925	900	1200	10.6
22224CA	53524	120	215	58	425	680	1900	2600	9.62
23224CA	3053224	120	215	76	535	940	1500	1900	12.1
22324	3624	120	260	86	700	1000	1400	1800	21.3
