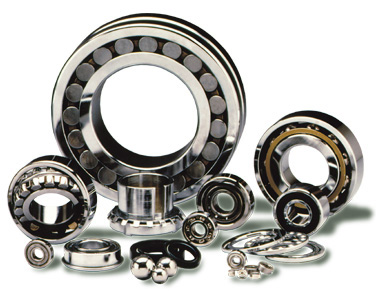

调心滚子轴承

调心滚子轴承 – 浏览次数：1 –时间：2010-12-06

产品详细介绍：Spherical roller bearings are double row,self-reraining units comprising solid outer ring with a concave raceway,solid inner rings and barrel rollers with cages.The inner rings with cylindrial or tapered bores.The symmetrical barrel rollers freely align themselves to the concave outer ring raceway.As a result,shaft deflections and mislignments of the bearing seats are compensated.

Spherical Roller Bearing
Bore Size:45-1280mm

Designations	Old spec	Principal Dimensions (mm)			Basic load rating (kN)		Speed ratings (rpm)		Weight (kg)
		d	D	B	Dynamic	Staitc	Grease	Oil
23026	3003126	130	200	52	355	635	1900	2600	6.64
23126CA	3053726	130	210	64	415	760	1700	2200	10.1
24126CA	4053726	130	210	80	505	980	900	1200	11.3
22226	3526	130	230	64	480	890	1800	2400	11.4
22226CA	53526	130	230	64	490	805	1800	2400	12.4
23226CA	3053226	130	230	80	670	1020	1300	1700	15.9
22326	3626	130	280	93	810	1210	1300	1700	27.2
23028	3003128	140	210	53	365	705	1800	2400	6.8
23128	3003728	140	225	68	420	780	1600	2000	10.9
23128/W33	3003728K	140	225	68	420	780	1600	2000	10.9
24128CA	4053728	140	225	85	580	1150	850	1100	13.5
22228	3528	140	250	68	532	865	1700	2200	14.2
22228CA	53528	140	250	68	560	930	1700	2200	15.7
23228CA	3053228	140	250	88	560	930	1200	1600	19.9
22328	3628	140	300	1025	910	1365	1100	1500	36.5
23030	3003130	150	2258	56	400	795	1700	2200	8.43
24030CA/W33	4053130K	150	225	75	475	998	1300	1700	9.39
23130	3003730	150	250	80	560	1120	1400	1800	15.8
24130CA	4053730	150	250	100	715	1400	800	1000	19.2
22230	3530	150	270	73	600	1000	1600	2000	18.4
22230CA	53530	150	270	73	630	1050	1600	2000	19.2
23230CA	3053230	150	270	96	950	1550	1100	1500	26.6
22330	3630	150	320	108	1064	1720	1000	1400	41.6
23032	3003132	160	240	60	445	875	1700	2200	10.2
24032	4003132	160	240	80	1790	3750	1100	1500	14.5
24132CA	4053732	160	270	109	865	1690	700	900	24.6
22232	3532	160	290	80	675	1170	1500	1900	23.5
23232	3003232	160	290	104	955	1770	1000	1400	29.9
22332	3632	160	340	114	1270	2050	950	1300	50.9
23034	3003134	170	260	67	555	1090	1600	2000	13.7
23034CA	3053134	170	260	67	544	1068	1600	2000	14.1
24034CA	4053134	170	260	90	705	1500	1000	1400	17.8
23134CA	3053734	170	280	88	730	1390	1200	1600	26.1
24134CA	4053734	170	280	109	915	1830	670	850	24.7
22234	3534	170	310	86	830	1370	1300	1700	28.9
