产品详细介绍：Spherical roller bearings are double row,self-reraining units comprising solid outer ring with a concave raceway,solid inner rings and barrel rollers with cages.The inner rings with cylindrial or tapered bores.The symmetrical barrel rollers freely align themselves to the concave outer ring raceway.As a result,shaft deflections and mislignments of the bearing seats are compensated.

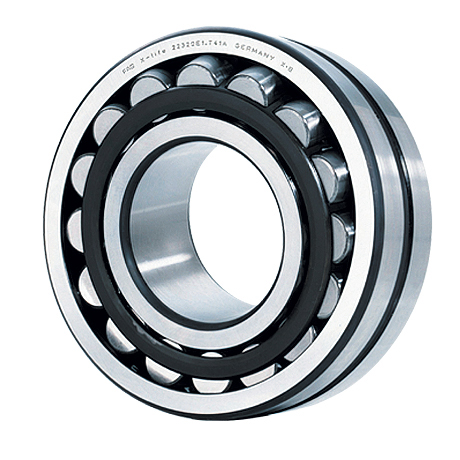

Spherical Roller Bearing
Bore Size:45-1280mm

Designations	Old spec	Principal Dimensions (mm)			Basic load rating (kN)		Speed ratings (rpm)		Weight (kg)
		d	D	B	Dynamic	Staitc	Grease	Oil
23234CA	3053234	170	310	110	1070	1930	950	1300	38
22334CA	53634	170	360	120	1188	1908	950	1300	61
23936CA	3053936	180	250	52	430	820	1700	2200	7.3
23036	3003136	180	280	74	567	1152	1400	1800	17.9
24036CA	4053136	180	280	100	793	1662	950	1300	26.6
23136	3003736	180	300	96	860	1670	1100	1500	28.6
24136CA	4053736	180	300	118	1020	2030	630	800	33
22236	3536	180	320	86			1300	1700	30.4
22236CA	53536	180	320	86	859	1550	1300	1700	30
22236CAQ1		180	320	86	895	1550	1300	1700	29.4
23236CA	3053236	180	320	112	1160	2130	900	1200	43.8
22336	3636	180	380	126	1470	2400	900	1200	72.8
23938CA	3053938	190	260	52	3315	6400	1700	2200	7.95
23038	3003138	190	290	75			1300	1700	18.5
23038CA	3053138	190	290	75	700	1450	1300	1700	18.1
23140K	3113740	200	340	112	1050	2050	950	1300	47.1
23140CA	3053740	200	340	112	1150	2250	950	1300	44
24040CA	4053140	200	310	109	985	2130	900	1200	31.3
24140CA	4053740	200	340	140	1380	2800	560	700	52.1
22240CA	53540	200	360	98	1360	2530	850	1100	44.3
22240CAK/W33	113540K	200	360	98	1360	2530	850	1100	44.2
23240CA	3053240	200	360	128	1319	2454	850	1100	53
22340	3640	200	420	138					96
23944	3053944	220	300	60	500	1190	1500	1900	12.9
23844	3844	220	320	76					20
23044	3003144	220	340	90	935	1900	1100	1500	28.8
24044CA	4053144	220	340	118	1150	2500	850	1100	39
23144CA	3053744	220	370	120	1370	2710	900	1200	54.7
24144CA	4053744	220	370	150	1640	3410	500	630	66.4
22244	3544	220	400	108	1310	2280	950	1300	62
22244CA	53544	220	400	108	1350	2400	950	1300	58.8
22344	3644	220	460	145	1910	3300	750	950	120
23948CA	3053948	240	320	60	514	1271	1300	1700	15
23048	3003148	240	360	92	920	2110	1000	1400	34.9
24048CA	4053148	240	360	118	1240	2080	800	1000	43.8
