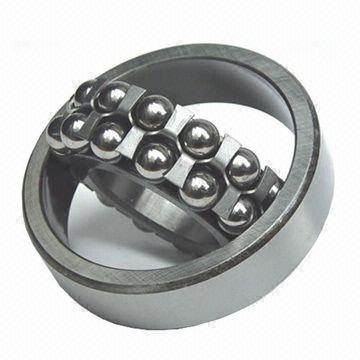

产品详细介绍：The self-aligning ball bearing has two rows of balls and a common concave sphered raceway in the outer ring. The bearing is consequently self-aligning and insensitive to angular misalignmengts of the shaft relative to the housing. It is particular suitable for applications where considerable shaft deflections or misalignment are to be expected.additionally,the self-aligning ball bearing has the lowest friction of all rolling bearings,which enables it to run cooler even at high speeds.

Bore Size:7-150mm

Designations	Principal Dimensions (mm)				Basic load rating (kN)		Limit Speed ratings (rpm)	Weight (kg)
	d	D	B	rs min	Dynamic	Staitc
1305K	25	62	17	1.1	18	5	14000	0.254
2305	25	62	24	1.1	24.5	6.55	13000	0.335
2305.2RS	25	62	24	1.1	18	5	8000	0.363
2305K	25	62	24	1.1	24.5	6.55	13000	0.328
1206	30	62	16	1	15.6	4.65	14000	0.221
1206K	30	62	16	1	15.6	4.65	14000	0.217
11206	30	62	16	1	15.6	4.65	8500	0.364
2206	30	62	20	1	25.5	6.95	12000	0.252
2206.2RS	30	62	20	1	15.6	4.65	8000	0.273
2206K	30	62	20	1	25.5	6.95	12000	0.246
2206K.2RS	30	62	20	1	15.6	4.65	8000	0.268
1306	30	72	19	1.1	21.2	6.3	11000	0.384
1306K	30	72	19	1.1	21.2	6.3	11000	0.379
2306	30	72	27	1.1	31.5	8.65	10000	0.488
2306.2RS	30	72	27	1.1	21.2	6.3	6700	0.55
2306K	30	72	27	1.1	31.5	8.65	10000	0.476
1207	35	72	17	1.1	16	5.2	12000	0.324
1207K	35	72	17	1.1	16	5.2	12000	0.319
11207	35	72	17	1.1	16	5.2	7500	0.544
2207	35	72	23	1.21	32	9	9500	0.389
2207.2RS	35	72	23	1.1	16	5.2	7000	0.422
2207K	35	72	23	1.1	32	9	9500	0.38
2207K.2RS	35	72	23	1.1	16	5.2	7000	0.432
1307	35	80	21	1.5	25	8	9500	0.507
1307K	35	80	21	1.5	25	8	9500	0.5
2307	35	80	31	1.5	39	11	9000	0.975
2307.2RS	35	80	31	1.5	25	8	6000	0.744
2307K	35	80	31	1.8	39	11	9000	0.96
1208	40	80	18	1.1	19.3	6.55	10000	0.414
1208K	40	80	18	1.1	19.3	6.55	10000	0.408
11208	40	80	18	1.1	19.3	6.55	6700	0.722
2208	40	80	23	1.1	31.5	9.5	9000	0.476
2208.2RS	40	80	23	1.1	19.3	6.55	6300	0.528
2208K	40	80	23	1.1	31.5	9.5	9000	0.465
