B1030810013
B1030810013 – 浏览次数：1 –时间：2010-12-06

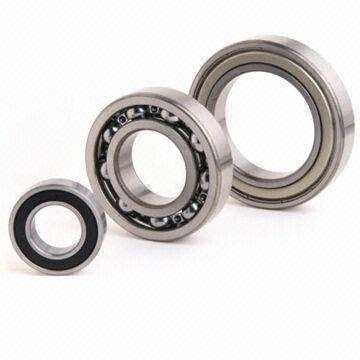

产品详细介绍：Deepgrooveballbearing are particularly versatile.They are simple in design, non-separable,suitable for high and even very high speeds and are robust in operation,requiring little maintenance.Deep raceway grooves and the close conformity between the raceway grooves and the ball enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads,even at high speeds.Single row deep groove ball bearings are the most widely used bearing type.

Designations Old spec Principal Dimensions (mm) Basic load rating (KN) Speed ratings(rpm) Weight(kg)
d D B Dynamic Staitc Grease Oil
61909 1000909 45 68 12 14.1 10.9 9000 11000 0.14
61910 1000910 50 72 12 14.5 11.7 8500 10000 0.14
61911 1000911 55 80 13 15.9 13.2 8000 9500 0.19
61912 1000912 60 85 13 16.4 14.2 7500 9000 0.2
61913 1000913 65 90 13 17.4 16 6700 8000 0.22
61914 1000914 70 100 16 23.7 21.1 6300 7500 0.35
61915 1000915 75 105 16 24.4 22.6 6000 7000 0.37
61916 1000916 80 110 16 24.9 24 5600 6700 0.4
61917 1000917 85 120 18 30.3 27 5300 6300 0.55
61918 1000918 90 125 18 33 31.5 5000 6000 0.59
61919 1000919 95 130 18 33.5 33.5 4800 5600 0.61
61920 1000920 100 140 20 41 39.5 4500 5300 0.83
61921 1000921 105 145 20 42.5 42 4300 5000 0.87
61922 1000922 110 150 20 43.5 44.5 4000 4800 0.9
61924 1000924 120 165 22 45 46 3600 4300 1.2
61926 1000926 130 180 24 49 50.6 3400 4000 1.6
61928 1000928 140 190 24 50 54 3200 3800 2.045
　 　 　 　 　 　 　 　 　 　
608 18 8 22 7 3.25 1.37 26000 34000 0.015
609 19 9 24 7 3.65 1.63 22000 30000 0.016
6000 100 10 26 8 4.55 1.96 20000 28000 0.019
6001 101 12 28 8 5.1 2.36 19000 26000 0.022
6002 102 15 32 9 5.6 2.85 18000 24000 0.031
6003 103 17 35 10 6 3.25 17000 22000 0.04
6004 104 20 42 12 9.3 5 15000 19000 0.068
6005 105 25 47 12 10 5.85 13000 17000 0.078
6006 106 30 55 13 12.7 8 11000 14000 0.113
6007 107 35 62 14 16 10.2 9500 12000 0.148
6008 108 40 68 15 16.6 11.6 9000 11000 0.185
6009 109 45 75 16 20 14.3 8000 10000 0.23
